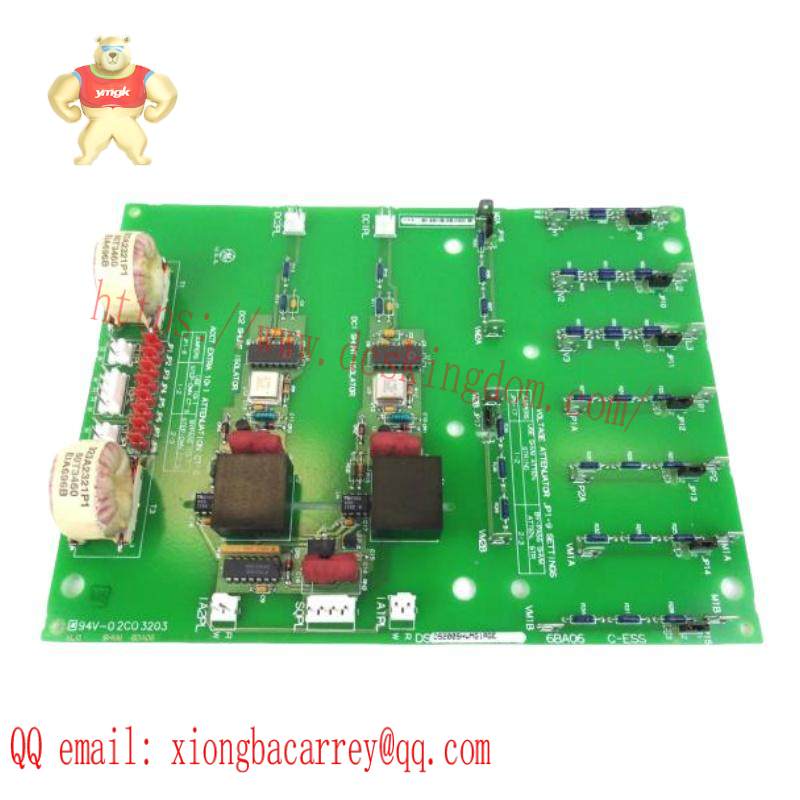

Manufacturer:General Electric
Model:DS200SHVMG1A
Functionality:SCR High Voltage M-Frame Interface Board
Compatibility:Mark V Turbine Control System Series
Board Type:M-Frame Interface
Integrated Circuits Protection:Static Electricity and Excess Voltages
PCB Coating Style:Normal Coating
Jumper Configurations:17 Available Jumpers for Desired Attenuation
The GE DS200SHVMG1A is specifically engineered for high-reliability applications within the industrial control sector. Built by General Electric, this board is part of the Mark V series of turbine control systems. Its core functionality lies in its ability to provide a robust interface medium between the M-frame drive’s SCR bridge and the wider control system, ensuring seamless operation even in demanding environments.
Integrated circuits help protect the board from damage caused by static electricity or excess voltages, making it a durable choice for industrial settings. Moreover, the majority of the hardware components are shielded by a thick protective coating, offering additional safeguarding against environmental factors.
One of the standout features of this board is the availability of 17 jumpers, allowing users to configure the desired attenuation according to their specific requirements. This customization option ensures optimal performance based on individual operational needs.
Installation is straightforward, and with the aid of the provided instructional manual, users can easily integrate the DS200SHVMG1A into their existing turbine control systems. The manual includes detailed performance specifications and dimensions, enabling precise installation and maintenance procedures.
In summary, the GE DS200SHVMG1A is an essential component for enhancing the efficiency and reliability of your turbine control systems, providing a robust interface solution designed to meet the rigorous demands of industrial applications.
