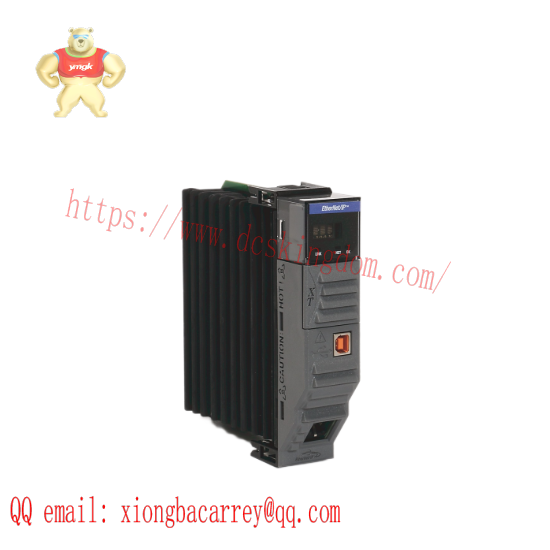

Allen-Bradley 1756-EN2TXT ControlLogix Ethernet/IP Bridge Module

Model Type:Bridge Module

Manufacturer:Allen-Bradley

Model Number:1756-EN2TXT

Communication Protocol:EtherNet/IP

Communication Speed:10/100 Mbps

Enclosure:Open Type

Connection Cables:802.3 compliant shielded or unshielded twisted pair

Temperature Rating:0 – 60 °C

Power Dissipation:5.1 W

Isolation:30 V continuous

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration:2 G

Shock:30 G

Interface:Ethernet

USB Port:Not applicable

    Engineered for optimal performance, the Allen-Bradley 1756-EN2TXT ControlLogix Bridge Module seamlessly integrates ControlLogix systems with EtherNet/IP networks, enhancing operational efficiency in industrial environments.

    This advanced module supports both 10/100 MBPS communication speeds, enabling versatile connectivity options for diverse industrial applications.

    Featuring an open type enclosure, it ensures reliable operation in a wide range of environmental conditions, from 5 – 95% non-condensing relative humidity, demonstrating its durability and adaptability.

    Withstanding vibrations up to 2 G and shock up to 30 G, this module is designed to withstand the rigors of industrial settings, ensuring minimal downtime and maintenance requirements.

    For users requiring high-speed data transfer, the module’s support for EtherNet/IP Bridge protocol ensures efficient data transmission, crucial for modern industrial automation systems.
