Operating Temperature Range:-40°C to 70°C (-40°F to 158°F)
Relative Humidity Limit:5% to 95% non-condensing
Power Dissipation:50W
Input Supply Voltage:120VAC / 240VAC, 1-Phase, 50-60Hz
Input Current:18A RMS
Output Voltage:120VAC / 240VAC, 3-Phase, programmable frequency 0-400Hz
Continuous Output Current:10A
Peak Output Current:30A
Bus Capacitance:1880 µF
Bus Overvoltage Protection:400VDC
Energy Absorption Capability:51J at 230VAC
Auxiliary Logic Supply Voltage:5V
Dimensions:198.12 x 144.27 x 98.1 mm
Weight:2.1kg (4.6lbs)

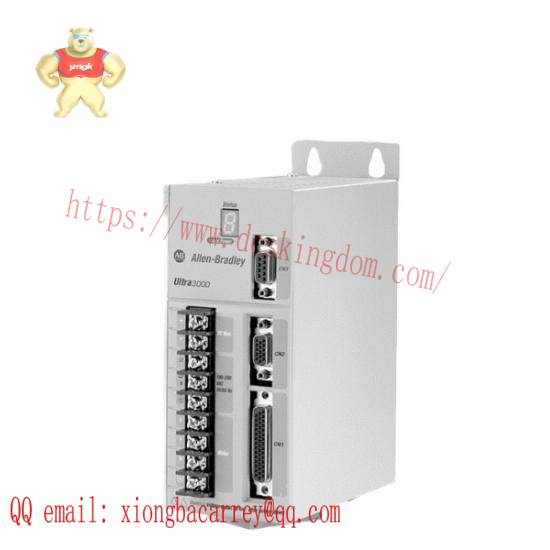

The Allen-Bradley 2098-DSD-020X is a high-performance Digital Servo Drive designed for seamless integration with Kinetix Servo Motors. Its advanced PID control system ensures precise motion control, making it ideal for demanding applications requiring high accuracy and reliability.
Featuring 8 optically isolated digital inputs and 4 N.O. relay outputs, this drive offers versatile connectivity options for various control scenarios. The integrated feed-forward capability enhances positioning accuracy, making it suitable for applications requiring complex movement patterns.
With a broad operational temperature range of 40-70°C (-40-158°F) and humidity up to 95% without condensation, the 2098-DSD-020X is built for robust performance in diverse industrial environments. Its open collector input types support a wide variety of sensors and control systems.
Designed for efficiency and reliability, the Allen-Bradley 2098-DSD-020X comes equipped with a 400V DC bus overvoltage protection feature, ensuring safe operation under varying electrical conditions. The compact design, weighing just 2.1kg, makes it easy to install and integrate into existing machinery.
The modular design of the 2098-DSD-020X allows for flexible configuration, accommodating a wide range of applications from automation lines to robotics. Its compatibility with Allen-Bradley’s extensive line of external encoders ensures accurate feedback, optimizing performance for each application.
