Power Supply Compatibility:Supports 12V DC
Temperature Range:-40°C to +70°C
Connector Types:1 x 20-pin ribbon cable, 5 x 10-pin connectors
Over Temperature Protection:Automatically shuts down if internal temperature exceeds specified threshold
Load Capacity:Up to 200A RMS
Operating Frequency:Up to 60 Hz
Dimensions (WxHxD):178mm x 101mm x 51mm
Weight:Approximately 0.7 kg

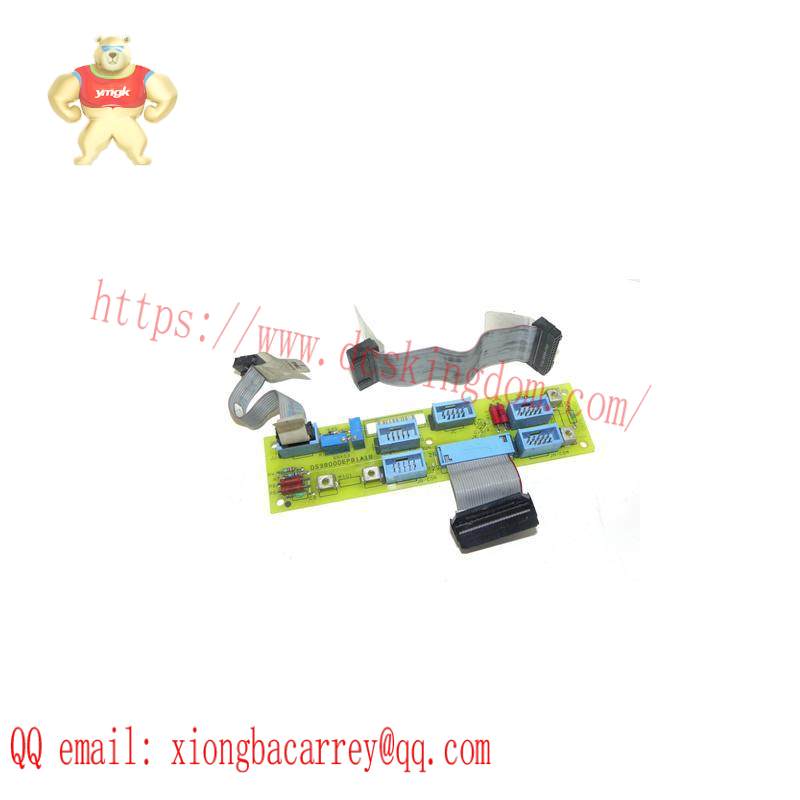

Engineered for seamless integration with Mark IV DS3800 systems, this Excitation Power Board is pivotal in maintaining system reliability and efficiency.
Featuring robust 20-pin ribbon cable and 5 10-pin connectors, it ensures high-speed data transfer and connectivity with other components.
Equipped with automatic over temperature shutdown, this board safeguards against overheating, preventing system failures and ensuring operational safety.
Populated with 4 terminals for easy addition of external components, it offers flexibility in customization and expansion according to specific application needs.
Accompanied by 2 trimmer resistors, users have the capability to adjust resistance values, optimizing performance for diverse excitation requirements.
