Rated Voltage:650V
Rated Current:30A
Operating Temperature Range:-40°C to +170°C
Cooling Method:Thermal Pad with Air Cooling
Package Type:TO-247
Insulation Resistance:≥10MΩ
Maximum Gate Drive Voltage:30V
Maximum Gate Drive Current:100mA

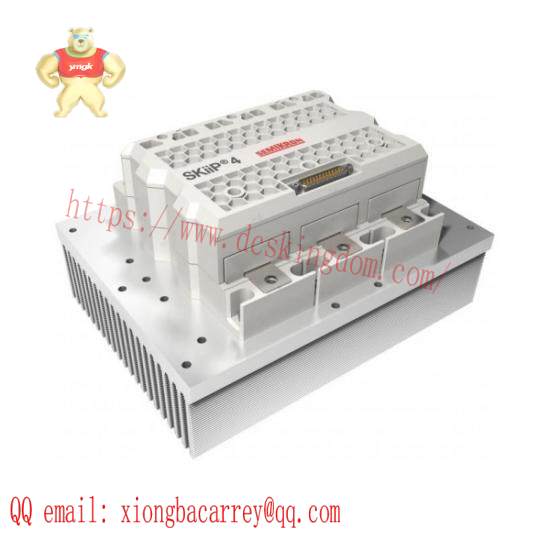

The SEMIKRON SKIIP1803GB172-3DL is a cutting-edge integrated power module that optimizes efficiency and space in power conversion systems for industrial machinery. Its advanced semiconductor design ensures reliability under demanding conditions.
Equipped with high-voltage capability and a peak current rating, this module is ideal for applications requiring precise control over large electrical loads. Its high switching frequency enables faster response times, enhancing system performance.
Featuring active air cooling, the SKIIP1803GB172-3DL maintains optimal operating temperatures even in harsh environments, ensuring continuous, stable operation without overheating. This makes it suitable for applications in extreme temperature ranges (-40°C to +170°C).
Constructed with a robust TO-247 package, the module offers excellent thermal conductivity and mechanical stability, contributing to its longevity and durability. The high insulation resistance ensures safety and minimizes the risk of electrical faults.
With its compact size (105mm x 52mm x 12mm), the SEMIKRON SKIIP1803GB172-3DL is designed for easy integration into existing systems, minimizing installation complexity and saving valuable space. It is an essential component for designers aiming to create efficient, compact, and high-performance power conversion solutions.
